parameters1：Name: Dissloved air flotation
parameters2：Capacity: 1m3/hr--100m3/hr
parameters3：Material: Steel with coating or SUS304

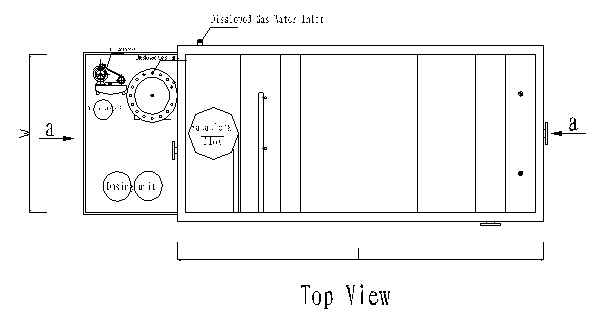

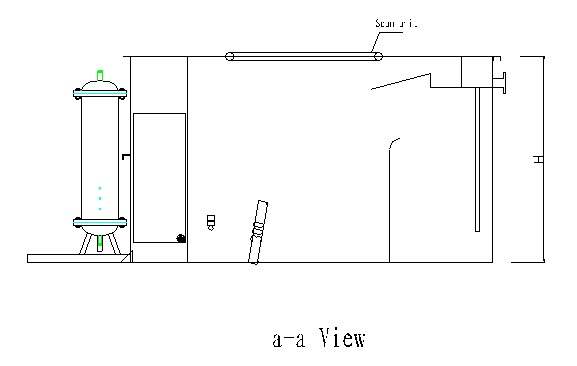

Chart Illustration:
Specification:
|
NO. |
Model No. |
Capacity (m3/h) |
Dissolvedgas volume (m3/h) |
GasFloationTank Size L*W*H (mm) |
Function Room (m2) |
DissolvedGasPump (kw) |
Scum Pump (kw) |
|
1 |
YQF-1 |
1 |
0.02-0.4 |
1500*800*1200 |
0.8 |
0.25 |
0.12 |
|
2 |
YQF-3 |
2-3 |
0.5-1 |
2000*1000*1400 |
1.0 |
0.37 |
0.12 |
|
3 |
YQF-5 |
3-5 |
1-2 |
1.2 |
1.5 |
0.25 | |
|
4 |
YQF-10 |
5-10 |
2-3 |
3500*1500*2000 |
2.3 |
1.5 |
0.25 |
|
5 |
YQF-15 |
10-15 |
3.75-4.5 |
4000*2000*2000 |
3.5 |
2.2 |
0.37 |
|
6 |
YQF-20 |
15-20 |
5.0-6.0 |
5000*2000*2000 |
4.5 |
5.5 |
0.37 |
|
7 |
YQF-25 |
20-25 |
6.3-7.5 |
6000*2000*2000 |
5.6 |
5.5 |
0.37 |
|
8 |
YQF-30 |
25-30 |
7.5-9.0 |
6000*2200*2200 |
7.0 |
7.5 |
0.55 |
|
9 |
YQF-35 |
30-35 |
8.7-10 |
6500*2500*2200 |
8.0 |
7.5 |
0.55 |
|
10 |
YQF-40 |
35-40 |
10-12 |
7000*2500*2200 |
9.2 |
7.5 |
0.55 |
|
11 |
YQF-50 |
40-50 |
12.5-15 |
7500*2500*2500 |
11.5 |
11.0 |
0.55 |
|
12 |
YQF-60 |
50-60 |
15-18 |
8000*3000*2500 |
14.0 |
11.0 |
0.55 |
|
13 |
YQF-70 |
60-70 |
18-20 |
2500*1200*1800 |
15.5 |
15.0 |
0.55 |
|
14 |
YQF-80 |
70-80 |
20-24 |
9000*3000*2800 |
18.8 |
18.5 |
0.55 |
|
15 |
YQF-100 |
90-100 |
25-30 |
10000*2500*2800 |
23.5 |
18.5 |
0.55 |
Usage:
DAF can remove suspending solids, oil and colloidals from industry and municipal waste water. it is adapted to suspensiins in waste water, whose up speed faster thn down speed. it is broadly used in waste water treatment from electro-plating, chemical, papermaking, leather making, oil refinery industry and municipal.
