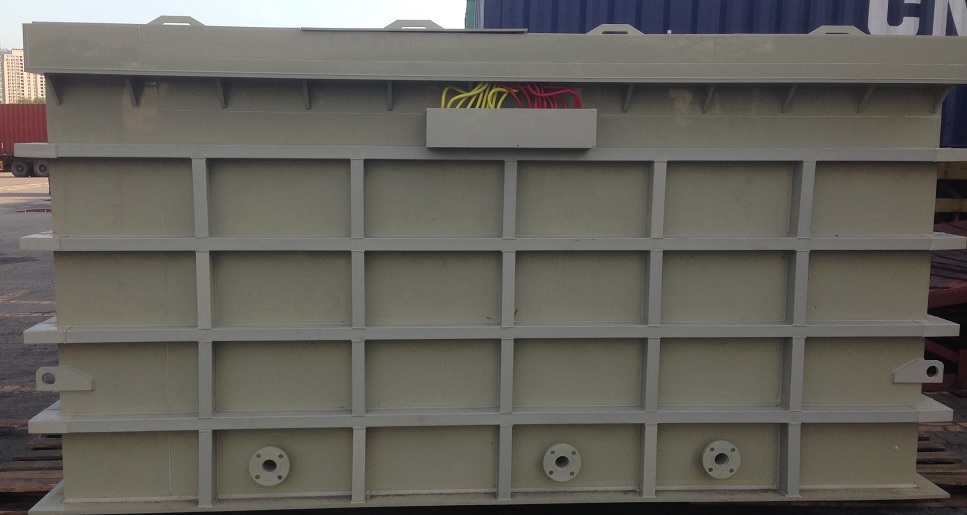

High voltage pulse electrocoagulation plat EC-1500
parameters1:Model: EC-1500
parameters2:DC output: 48V max 1000A max
parameters3:Treatment capacity: 30m3/hr


Input : 380V, 50HZ,

DC output: 48V, 1000A.

Power: 48KVA.

Pulse frequency : 5KHZ.

Voltage/current adjust range: 0-100%.

Output Waveform: impulse square wave.

Automatic reverse       automatic reverse time can be setted

The power output completely isolated from the grid

Cooling methode: Forced air cooling

PLC control all components.

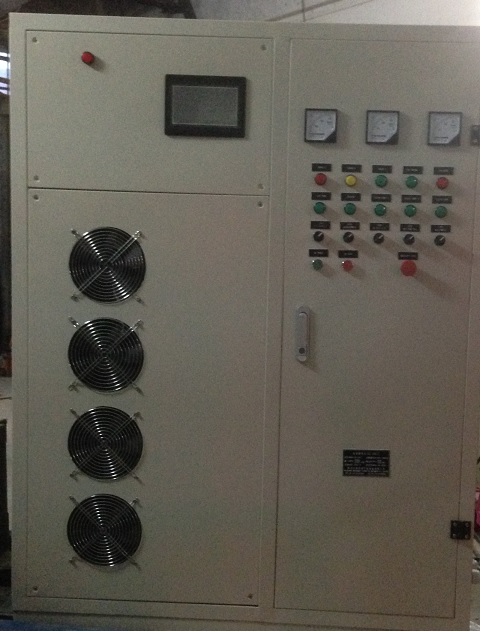

control panel part size: 1200*650*1600mm

Material: Steel with coating.

Components brand:  Schnerder.


Cables diameter:  Cu plate.

Frame: Steel with coating.
